Details

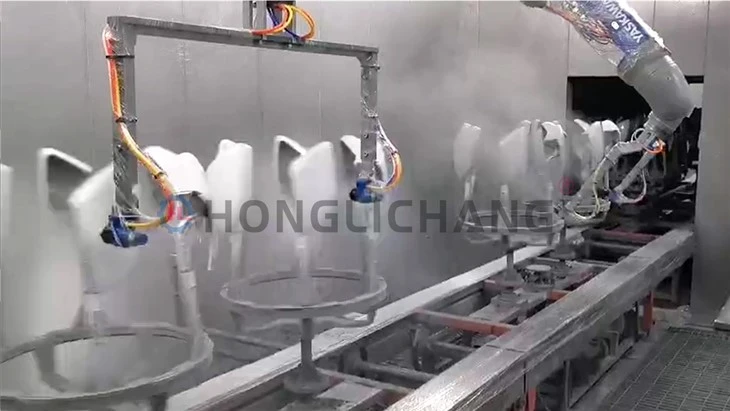

It features simple structure, easy commissioning, high repeatability and outstanding cost performance. Optimized for circumferential full-coverage coating, this robot can work standalone or be integrated into complete painting lines. Widely applied to batch production of round, curved and tubular workpieces, it delivers uniform film thickness, high paint utilization and stable running performance, serving as an ideal economical solution for circumferential spraying processes.
Core Differentiation
VS 6-Axis Articulated Spray Robot
6-axis robots own full spatial freedom for ultra-complex 3D parts, with high investment and complicated programming.
The rotary paint robot focuses on circular/curved workpieces. It uses workpiece rotation to achieve 360° coverage instead of multi-axis posture adjustment. It has lower cost, simpler operation and faster model changeover, more targeted for regular rotary workpieces.
VS Linear Reciprocating Spraying Machine
Reciprocating machines move along straight tracks, prone to uneven film and blind spots on circular or circumferential surfaces.
This robot matches workpiece rotation + fixed spraying arm movement, ensuring consistent gun distance and angle around the whole circumference. It solves the defect of thin coating on circular edges and curved transition areas.
VS Manual Spraying
Manual operation causes unstable film thickness, large color difference and low efficiency, plus potential health hazards.
The rotary robot runs with fixed speed and trajectory, maintaining identical coating effect for every product. It realizes continuous automatic operation and greatly cuts rework rate.
VS Ordinary Single-Station Rotating Fixture
Common rotating fixtures only drive workpiece rotation without integrated spraying mechanism, needing separate spray guns and manual adjustment.
This all-in-one unit integrates rotation drive and spraying arm into one system, with synchronous linkage of rotation speed and spraying movement. Parameters are centrally controlled for higher synchronization and coating consistency.
Feature And Advantage
Working Principle & Process Flow
1. Synchronous Rotation & Spraying Design
The workpiece rotates steadily while the spraying arm moves up and down/horizontally in sync. The spray gun keeps a fixed distance and angle to the workpiece surface, realizing 360° full coverage without blind spots on circular and curved parts.
2. Simple Operation & Fast Product Changeover
Adopt touch screen control and intuitive track teaching. Multiple sets of rotation speed, arm speed and spraying parameters can be stored. One-click program switching greatly shortens downtime when changing workpiece models.
3. Compact Integrated Structure
Rotary drive unit and spraying mechanism are assembled as a whole. It requires less installation space, convenient for single-station use or integration into existing production lines. No complicated mechanical matching work needed.
4. Excellent Anti-sagging Performance
Wide-range adjustable rotation speed. Low-speed operation avoids paint sagging and accumulation on bottom areas of circular workpieces, ensuring consistent appearance across the whole surface.
5. Full Explosion-proof & Reliable Safety
All motors, circuits and electrical components pass strict explosion-proof treatment, complying with safety standards for flammable paint environments. Multiple protection functions ensure stable and safe 24-hour continuous operation.
6. Low Maintenance Cost
Simplified transmission structure with fewer vulnerable parts. Daily maintenance only includes regular cleaning and lubrication, reducing long-term operation and maintenance expenses.
Specifications
Rotary Motion & Mechanical Structure
| Parameter Item | Technical Specification | Remarks |
|---|---|---|
| Main Structure | Integrated rotary base + multi-joint spraying arm | Compact layout, small floor space |
| Workpiece Rotation Speed | 3 ~ 20 r/min, stepless adjustable | Slow & stable rotation to avoid paint sagging |
| Rotation Mode | Continuous rotation / Intermittent rotation (optional) | Select per workpiece structure and process |
| Max. Load per Station | 10 kg / 18 kg / 25 kg (optional) | Adapt to plastic, metal and alloy workpieces |
| Spraying Arm Stroke | Vertical: 600 ~ 1600 mm Horizontal: 500 ~ 1200 mm | Covers different workpiece heights and diameters |
| Arm Moving Speed | 0.2 ~ 1.2 m/s, adjustable | Match rotation speed for uniform coating |
| Repeat Positioning Accuracy | ±0.04 mm | Stable spraying track for mass production |
Spraying & Atomization System
| Parameter Item | Technical Specification | Remarks |
|---|---|---|
| Matched Spray Gun | HVLP spray gun / Electrostatic spray gun | Dual options for different coating demands |
| Electrostatic Voltage | 45 ~ 88 kV stepless adjustable | Enhance paint adsorption on curved surfaces |
| Paint Flow Control Accuracy | ±3 mL/min | Stable film thickness around circumference |
| Standard Film Thickness | Primer: 15~22 μm, Topcoat: 18~32 μm Tolerance: ±3 μm | Uniform coating on circular surfaces |
| Paint Transfer Efficiency | ≥82% | Higher than traditional rotary fixture spraying |
| Atomizing Particle Size | 6 ~ 16 μm | Fine atomization to reduce orange peel |
Control & Safety System
| Parameter Item | Technical Specification | Remarks |
|---|---|---|
| Control Mode | PLC + Touch screen intelligent control | Visual parameter setting, easy operation |
| Programming Method | Simple track teaching + parameter storage | Save dozens of groups of formulas for quick switch |
| Linkage Function | Synchronous control of rotation speed and arm movement | Perfect coordination for full circumferential coverage |
| Explosion-proof Grade | Ex d II BT6 | Full explosion-proof design for paint workshop |
| Safety Protection | Overload protection, mechanical limit, emergency stop | Prevent equipment damage during operation |
Application Areas
Mainly applied to automatic spraying for circular, cylindrical, spherical and full-curved workpieces: motorcycle helmets, lamp housings, pipe fittings, cylindrical hardware, roller parts, circular plastic shells, sports equipment and rotary furniture components. Compatible with solvent-based paint, water-based paint, metallic paint, matte paint and ordinary protective coatings.
Honglichang Serve
Technical Training
Warranty & After-sales Support
Customization Service
Certificate
- National High-Tech Enterprise: Leaders in innovative automotive coating systems.
- ISO 9001 Quality Management: Consistent, top-quality PP ABS spray painting.
- ISO 14001 Environmental Management: Eco-friendly car parts paint shop solutions.
- ISO 45001 Occupational Health: Safe operations for every automotive coating line.
- Three National Invention Patents: Cutting-edge PP ABS spray painting tech.
- Seven Software Copyrights: Smart automation for precise automotive polymer coating.
- 57 Utility Model Patents: Practical innovations for car coating efficiency.
- General Contracting Qualifications: Expertise in mechanical and environmental engineering.
FAQ
Q1: What kinds of workpieces is this robot suitable for?
A1: It is specially designed for circular, cylindrical, spherical and full curved workpieces, such as helmets, lamp covers and tubular parts.
Q2: Can it complete 360° all-round spraying?
A2: Yes. The synchronous rotation of workpiece and spraying arm realizes full circumferential coverage without spraying blind spots.
Q3: Is the operation complicated?
A3: No. It adopts touch screen control and simple teaching mode. Daily production only needs one-click program selection.
Q4: Can it be used with automatic painting lines?
A4: Absolutely. It can be seamlessly connected with conveyors, spray booths and curing ovens to form a fully automatic production line.
Q5: Will paint sag occur during high-speed rotation?
A5: The rotation speed is adjustable in a wide range. We can set proper speed according to paint characteristics to effectively avoid sagging and dripping.
